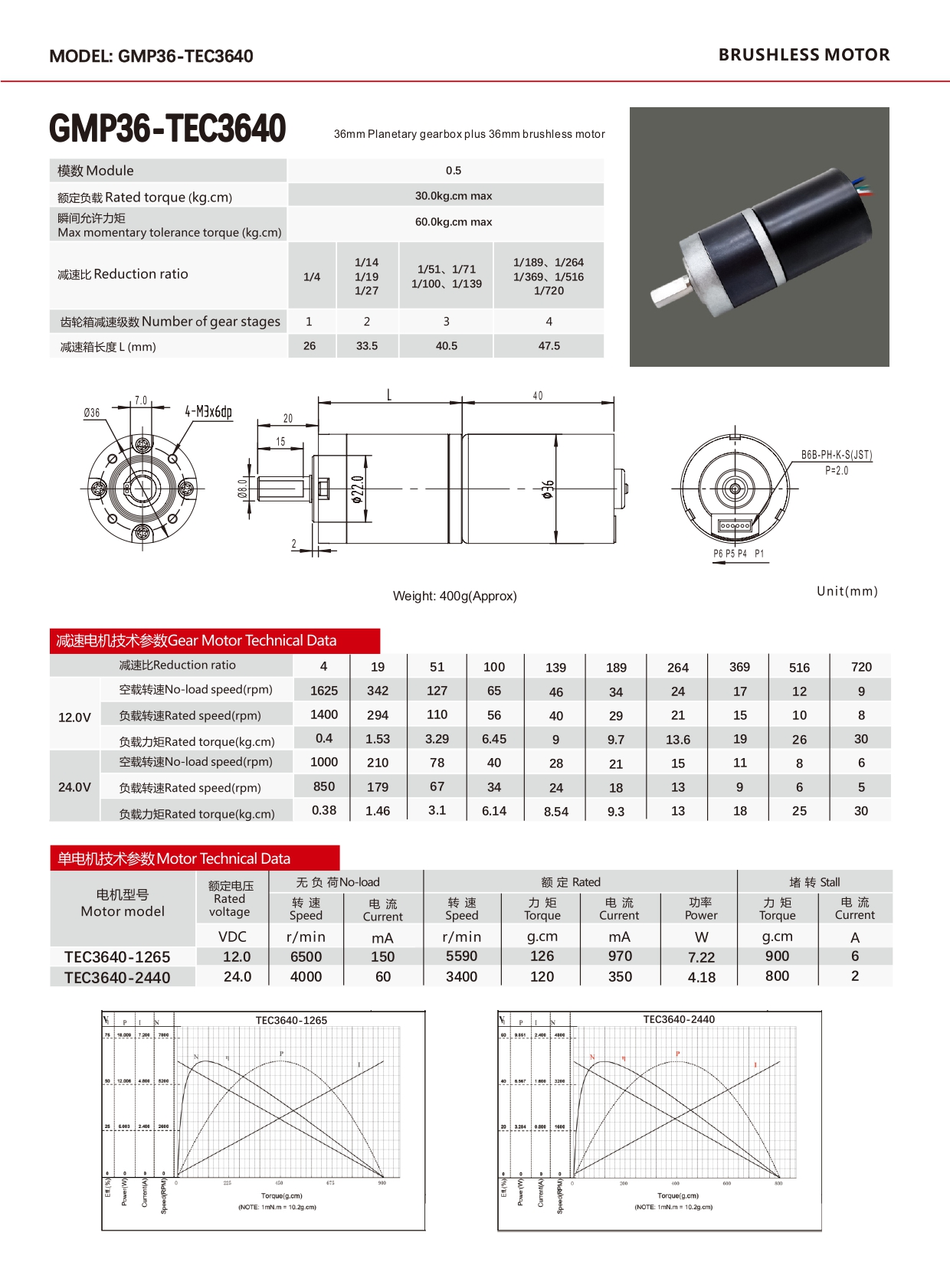

GMP36-TEC3640 36mm Brushless Planetary Gear Motor High Torque BLDC Gearmotor 12V 24V for Industrial Automation & AGV
High Torque Density: The 36mm brushless motor is optimized for high magnetic flux, providing impressive continuous torque. The planetary gearbox multiplies this torque further, enabling the unit to drive heavy loads at low speeds with high efficiency (typically >85% overall).
Brushless Reliability: With no brushes to wear, this motor offers exceptional operational life (10,000+ hours typical) and virtually maintenance-free operation. It also produces less electrical noise and higher efficiency than brushed alternatives.
Compact Axial Length: At just 40mm length (excluding shaft), this gearmotor is notably short for its diameter, making it ideal for applications where depth is constrained but width is available.
Precision Planetary Gearbox: The multi-stage gearbox features hardened steel gears and precision bearings to minimize backlash (<1-2° typical). Various reduction ratios from 5:1 to 500:1 are available to match speed/torque requirements.
Integrated Feedback Options: Hall sensors or encoders can be integrated for closed-loop speed and position control. Custom winding options are available for 12V or 24V systems.
Automated Guided Vehicles (AGVs): Used as drive wheel motors or lift mechanism actuators in warehouse robots and material handling vehicles.
Industrial Automation: Ideal for indexing tables, conveyor drives, and automated assembly line actuators requiring precise motion control.
Collaborative Robots (Cobots): Suitable for joint actuators in light payload cobots where compactness and smooth motion are essential.
Medical Equipment: Used in surgical tables, patient lifts, and imaging system positioning mechanisms.
