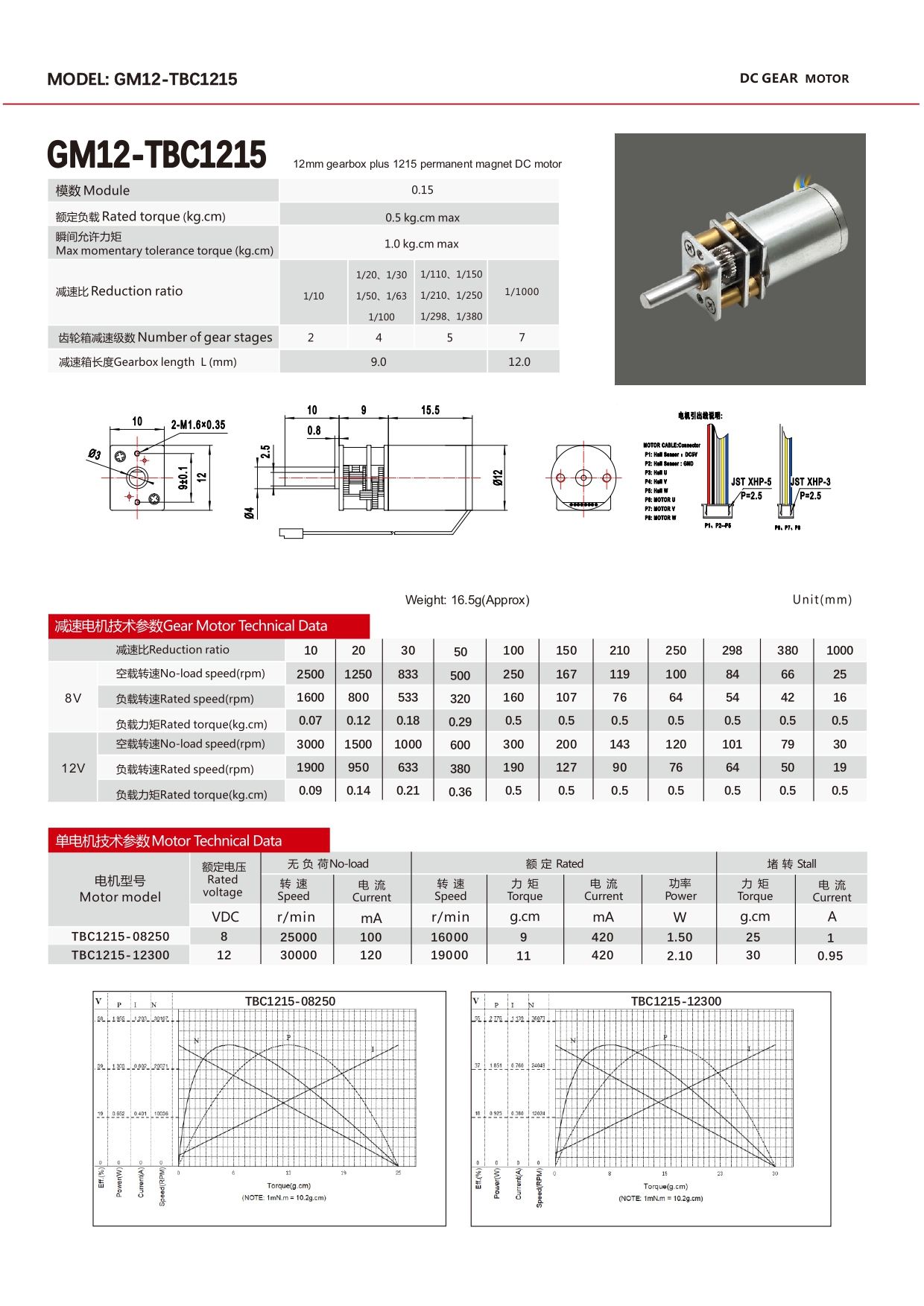

GM12-TBC1215 12mm DC Gear Motor 8V 12V Permanent Magnet Micro Gearmotor
High torque density in a 12mm frame — rated load torque up to 0.5 kg.cm, with a maximum momentary tolerance torque of 1.0 kg.cm.
Wide reduction ratio range — available from 1/10 to 1/1000.
Dual voltage options — 8V and 12V permanent magnet DC motor versions for flexible system design.
Smooth and quiet operation — 0.15 gear module and precision gear stages help reduce noise and vibration.
Long service life — durable gearbox structure and stable PMDC motor performance for continuous duty applications.
Easy speed control — speed can be adjusted by voltage or PWM, making it ideal for closed-loop and open-loop control systems.
Customizable configuration — shaft, cable, connector, gear ratio and encoder options can be customized for OEM projects.
Cost-effective for mass production — suitable for consumer electronics, robotics, smart home devices and industrial automation.
Robotics — robot joints, grippers, educational robots, humanoid robots, robotic arms
Smart home — smart locks, automatic curtains, smart feeders, camera gimbals, door mechanisms
Medical and healthcare — portable pumps, massage devices, laboratory automation, rehabilitation equipment
Security and surveillance — CCTV pan/tilt systems, access control, electronic locks
Precision instruments — optical devices, measuring equipment, testing instruments
Consumer electronics — toys, RC models, drones, beauty devices, handheld gadgets
Industrial automation — valve actuators, vending machines, solar trackers, conveyor systems
Automotive — mirror actuators, headlight adjusters, charging port locks, small actuators
