TDC50108 50mm diameter high torque DC 24v 36v coreless brushed motor


  • Model: TDC50108
  • Diameter: 50mm
  • Length: 108mm
  • Power: 200W
  • Life time: 2000H
  • img

    Product Detail

    Specification

    Product Tags

    Application

    Business Machines:
    ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
    Food and Beverage:
    Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
    Camera and Optical:
    Video, Cameras, Projectors.
    Lawn and Garden:
    Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
    Medical
    Mesotherapy,insulin pump,hospital bed,Urine Analyzer

    Parameter

    TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications. Each series offers a choice of rated voltage versions to meet the needs of the user, as well as gear box, encoder, high and low speed, and other application environment customization possibilities.

    Using precious metal brushes, high performance Nd-Fe-B magnet, tiny gauge high strength enamelled winding wire, the motor is a compact, light weight precision product. This high-efficiency motor has a low starting voltage and consumes less electricity.

    Features

    Bi-direction
    Metal end cover
    Permanent Magnet
    Brushed DC Motor
    Carbon Steel Shaft
    RoHS Compliant


  • Previous:
  • Next:

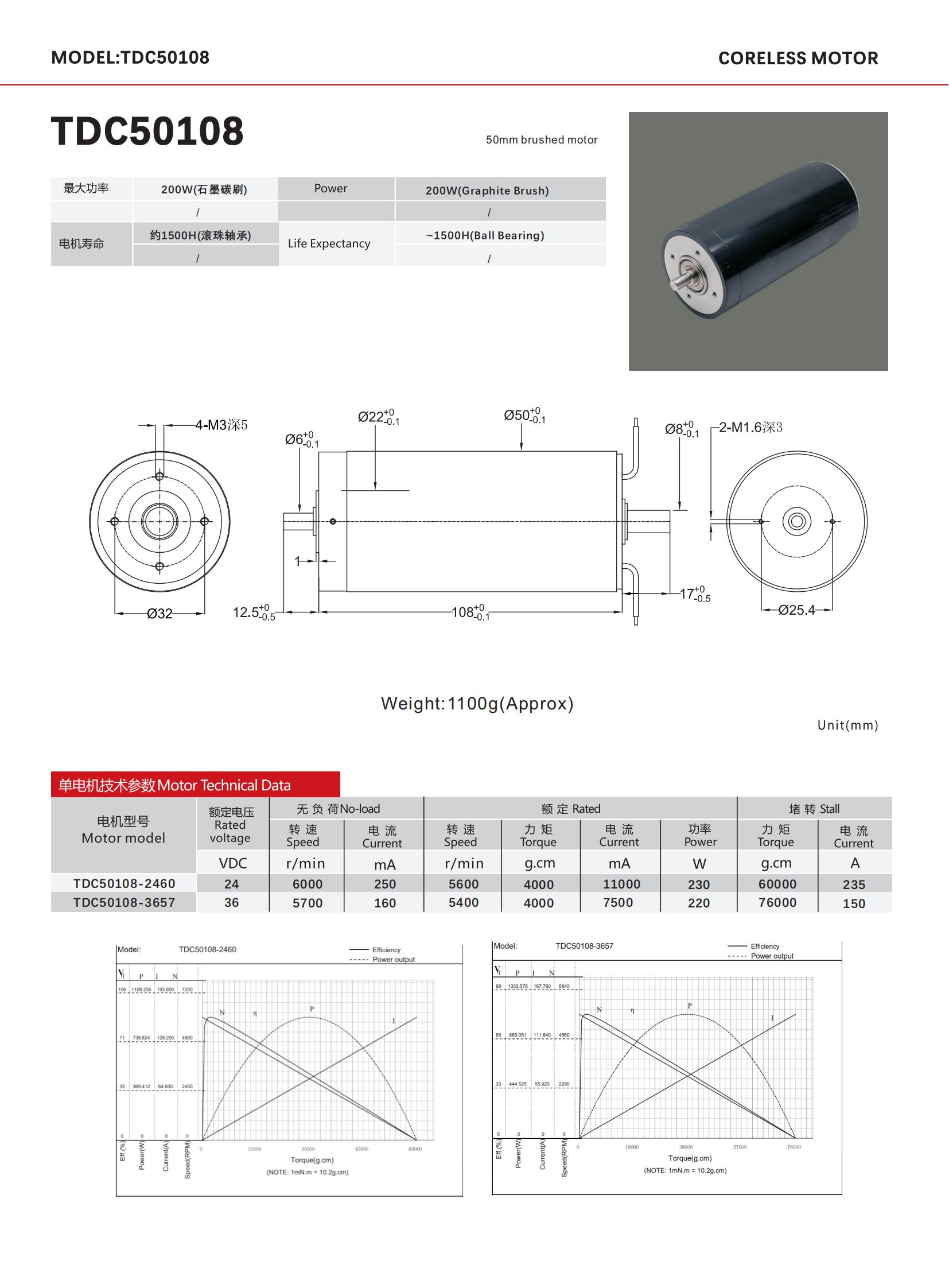

  • TDC50108_00
