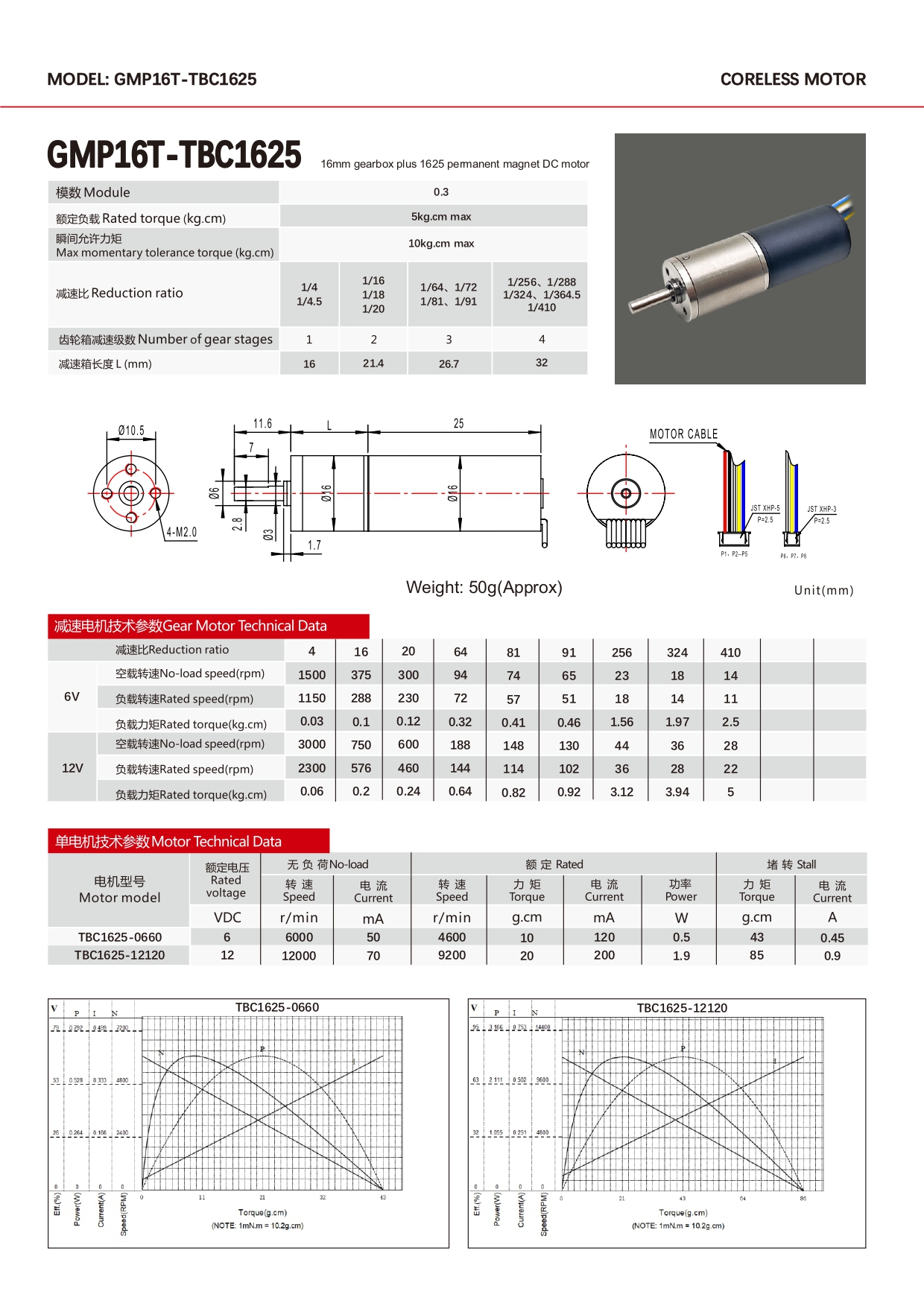

GMP16T-TBC1625 12V 24V 16mm Brushless Coreless Planetary Gear Motor High Efficiency BLDC Gearmotor for Medical & Lab Automation
Short Axial Profile: At only 25mm in length (excluding shaft), this gearmotor is designed for applications with strict length constraints. The 16mm diameter provides a larger rotor than 12mm motors, allowing for higher torque without increasing length.
Brushless Coreless Advantages: Zero cogging ensures completely smooth torque delivery, even at very low speeds. The ironless rotor eliminates eddy current and hysteresis losses, achieving efficiency up to 85-90%.
Long Operational Life: With no brushes to wear and precision, sealed bearings, this motor is rated for continuous operation exceeding 10,000 hours. The planetary gearbox is filled with high-grade grease for lifetime lubrication.
High Torque Density: The planetary gearbox multiplies motor torque by ratios up to 1000:1, generating output torque far exceeding what the motor alone could provide. Hardened steel gears ensure durability under varying loads.
Hall Sensor Option: Internal Hall sensors can be added for sensored commutation, enabling precise low-speed control, smooth startups, and accurate positioning when paired with a suitable controller.
Surgical Robotics: Ideal for small joint actuators in robotic surgical instruments, powered forceps, and endoscopic tools requiring precise, smooth force application.
Laboratory Automation: Used in microplate handling robots, automated pipettors, and sample preparation systems where space is at a premium.
Medical Pumps: Perfect for syringe pumps, peristaltic pumps, and infusion devices requiring accurate flow control and long-term reliability.
Optical Positioning: Suitable for mirror gimbals, lens focusing mechanisms, and filter wheels in compact optical instruments.
