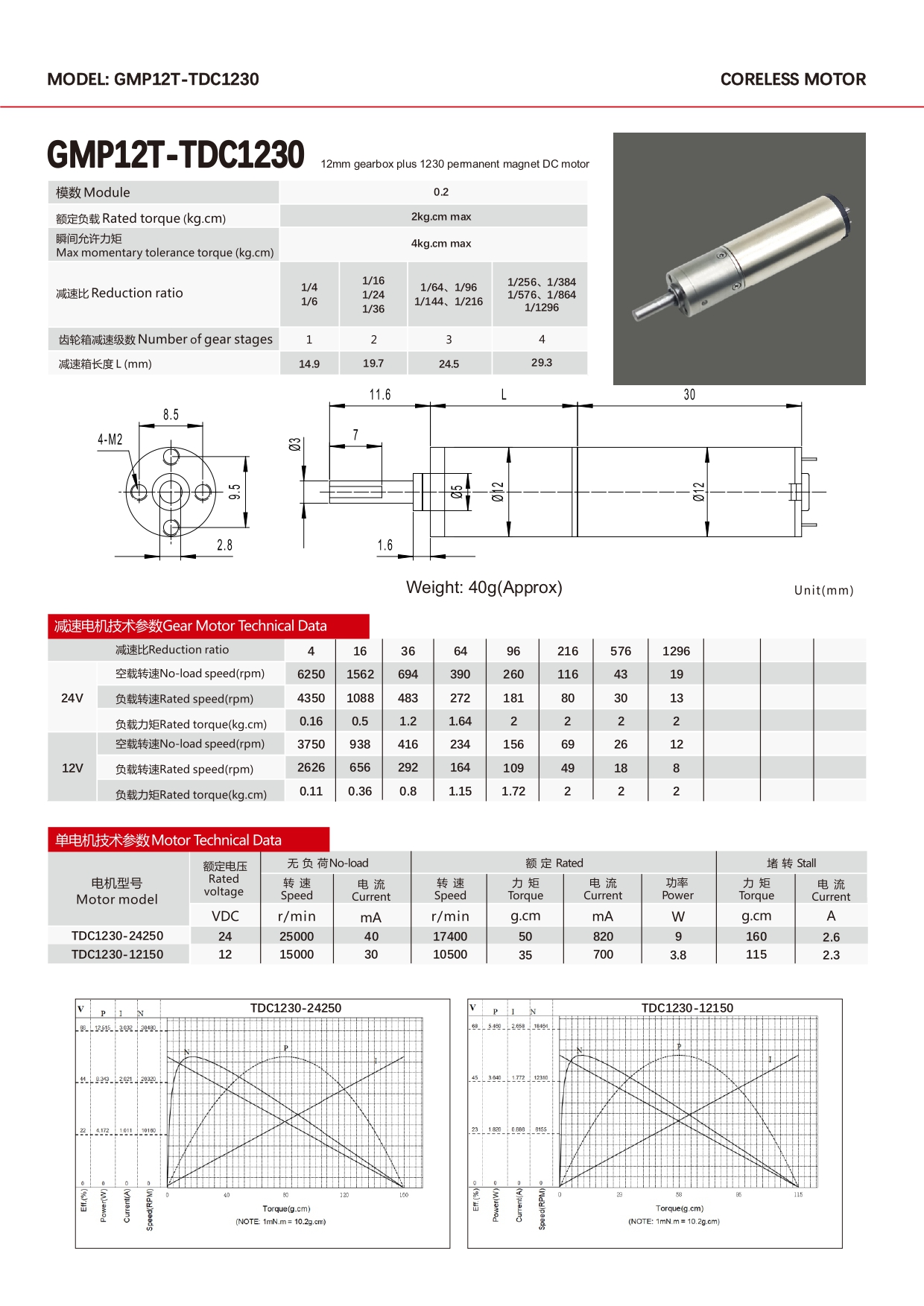

GMP12T-TDC1230 12mm Brushed Coreless Planetary Gear Motor Compact DC Coreless Gearmotor 6V 12V High Torque for Portable Devices

Cost-Effective Coreless Technology: The brushed coreless motor provides the same ironless rotor benefits (no cogging, very low inertia) as brushless versions but with lower-cost drive requirements—simple DC voltage control without complex electronic commutation.

High Torque via Planetary Reduction: The integrated planetary gearbox multiplies the motor's high-speed, low-torque output into usable low-speed, high-torque power. Reduction ratios from 5:1 to 1000:1 allow customization for specific speed/torque requirements.

Responsive and Smooth Operation: With mechanical time constants as low as 10-20 milliseconds, this motor responds instantly to control signals. The zero-cogging design ensures vibration-free rotation, critical for optical and tactile applications.

Compact Form Factor: The 12mm diameter enables integration into very tight spaces, while the 30mm length provides sufficient magnetic volume for practical torque output. This shape is ideal for tubular instruments and pen-style devices.

Simple Drive Electronics: Unlike brushless motors, this brushed version operates directly from DC power sources with just a simple H-bridge or even a single transistor for speed control, reducing system complexity and cost.
