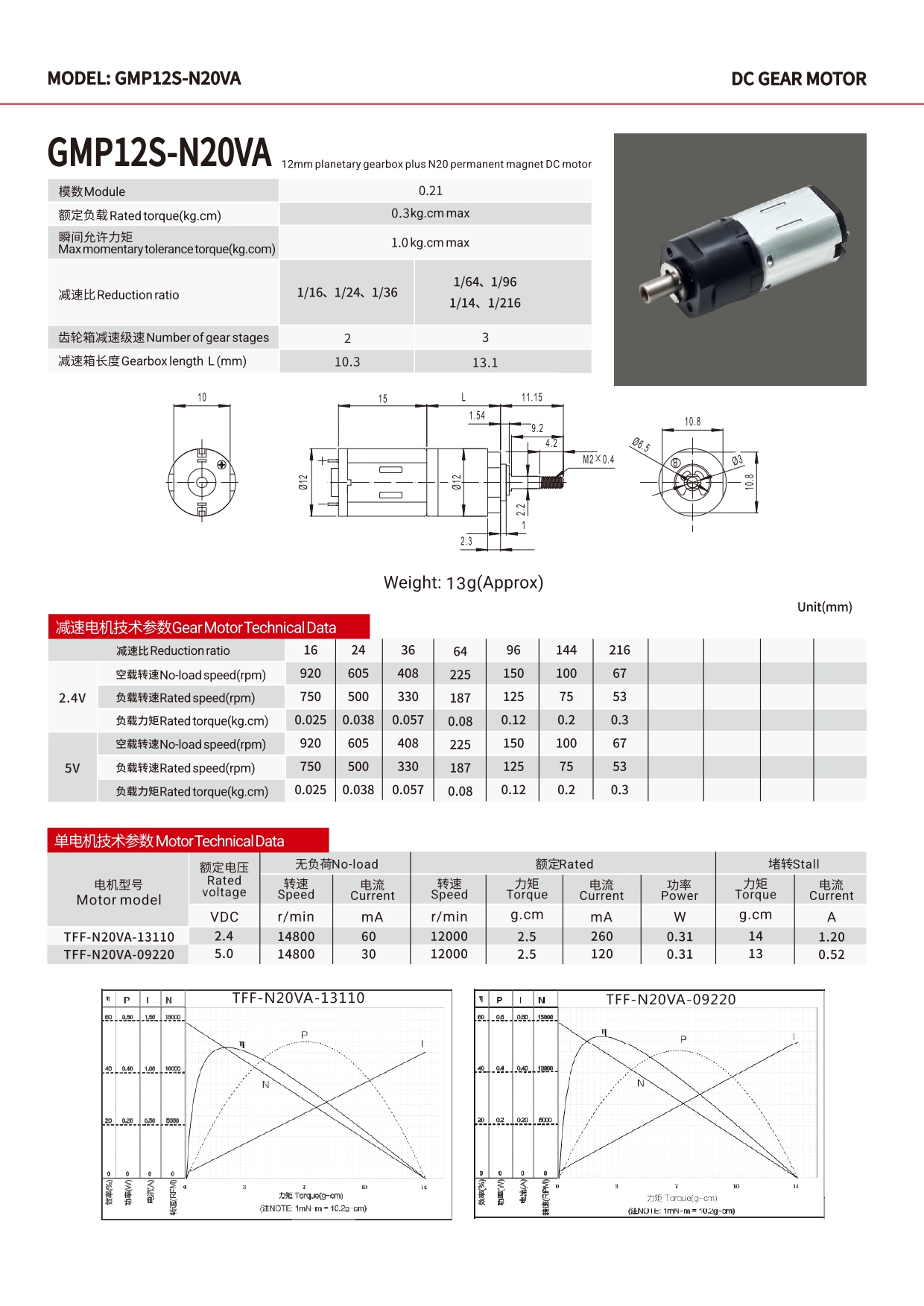

GMP12S-N20VA 12mm Planetary Gear Motor N20 DC Motor with Encoder Option High Torque Micro Gearmotor

12mm planetary gearbox + N20 PMDC motor — a high-performance micro drive with excellent torque-to-size ratio.

Planetary gear structure — compared with standard spur gearboxes, the planetary design offers higher torque capacity, smoother operation, better wear resistance and longer service life.

Encoder option available — the GMP12S-N20VA can be equipped with an encoder, enabling precise speed control, position feedback and closed-loop operation for robotics, automation and precision instruments.

Fast and stable output — the 2.4V and 5V versions both offer up to 920 rpm no-load at 1/16 ratio, and down to 67 rpm no-load / 53 rpm rated at 1/216 ratio with 0.3 kg.cm rated torque.

Efficient N20 motor performance — rated torque of 2.5 g.cm, rated power of 0.31 W, and low current consumption.

Ultra-lightweight — total weight is only approximately 13 g, perfect for portable and miniature devices.

Compact dimensions — 12mm gearbox diameter, Φ3 mm output shaft, M2x0.4 mounting threads and a short overall length.

Customizable for OEM projects — reduction ratio, output shaft, cable, connector and encoder configuration can be customized on request.
