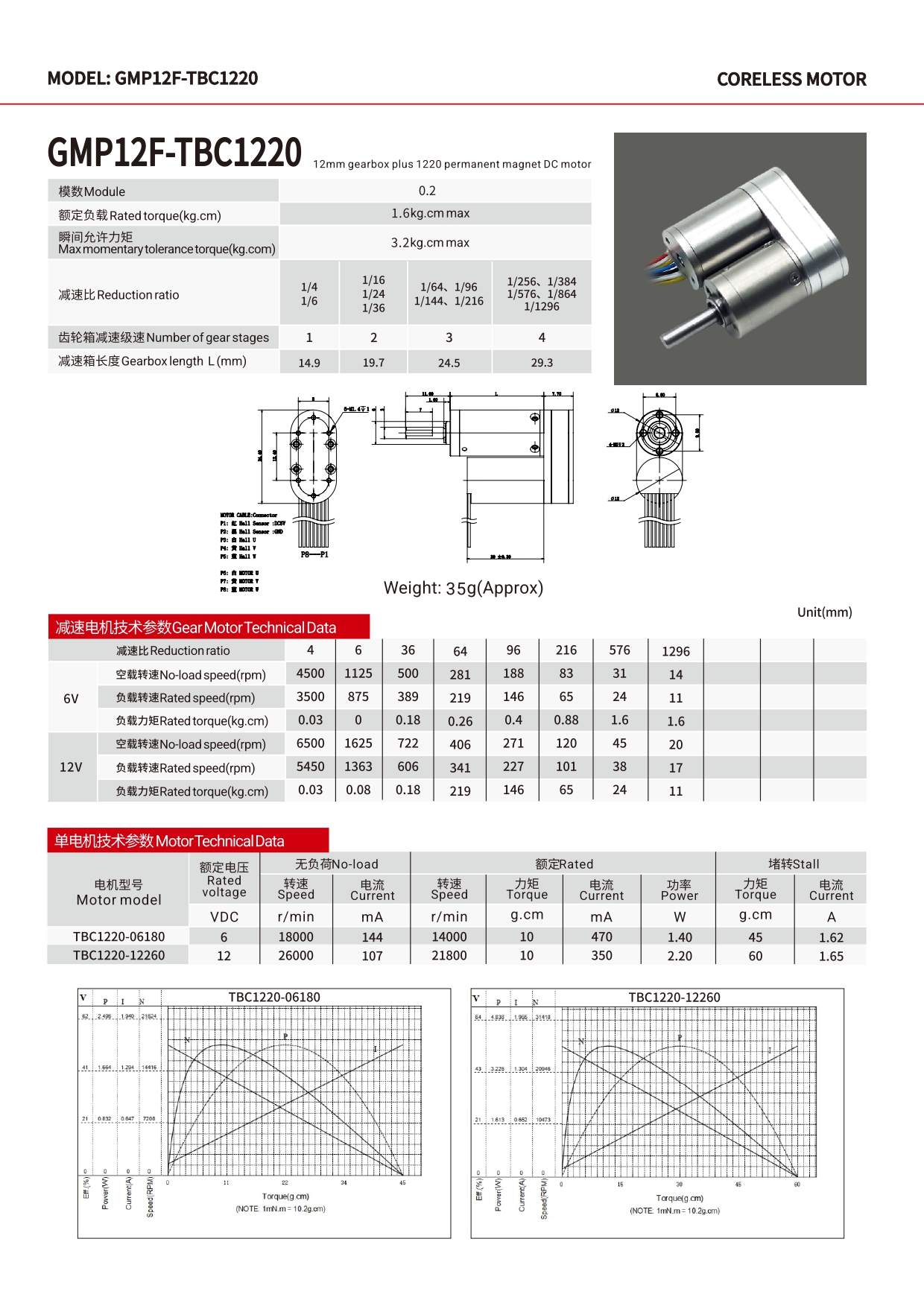

GMP12F-TBC1220 12mm Coreless Gear Motor 6V 12V High Torque 1.6kg.cm Micro DC Gearmotor

Unusual twin-cylinder / parallel-offset structure — unlike a conventional inline gearmotor, the gearbox and motor are arranged side by side. This special shape reduces axial length and gives designers more flexibility when mounting the motor in compact or flat spaces.
Fast output speed with low-speed high-torque options — the 12V version reaches up to 6500 rpm no-load at 1/4 ratio, and still provides 20 rpm no-load / 17 rpm rated at 1/1296 ratio with 1.6 kg.cm rated torque. The 6V version reaches 4500 rpm no-load at 1/4 ratio, and 14 rpm no-load / 11 rpm rated at 1/1296 ratio.
Coreless motor benefits — smooth operation, fast response, low noise, no cogging and high efficiency compared with conventional iron-core micro motors.
Lightweight and compact — total weight approximately 35 g, suitable for portable and miniature equipment.
Motor performance — the 6V motor has a no-load speed of 18,000 rpm and rated torque of 10 g.cm; the 12V motor has a no-load speed of 26,000 rpm and rated torque of 10 g.cm.
Customizable for OEM projects — reduction ratio, output shaft, cable, connector and lead length can be customized on request.
