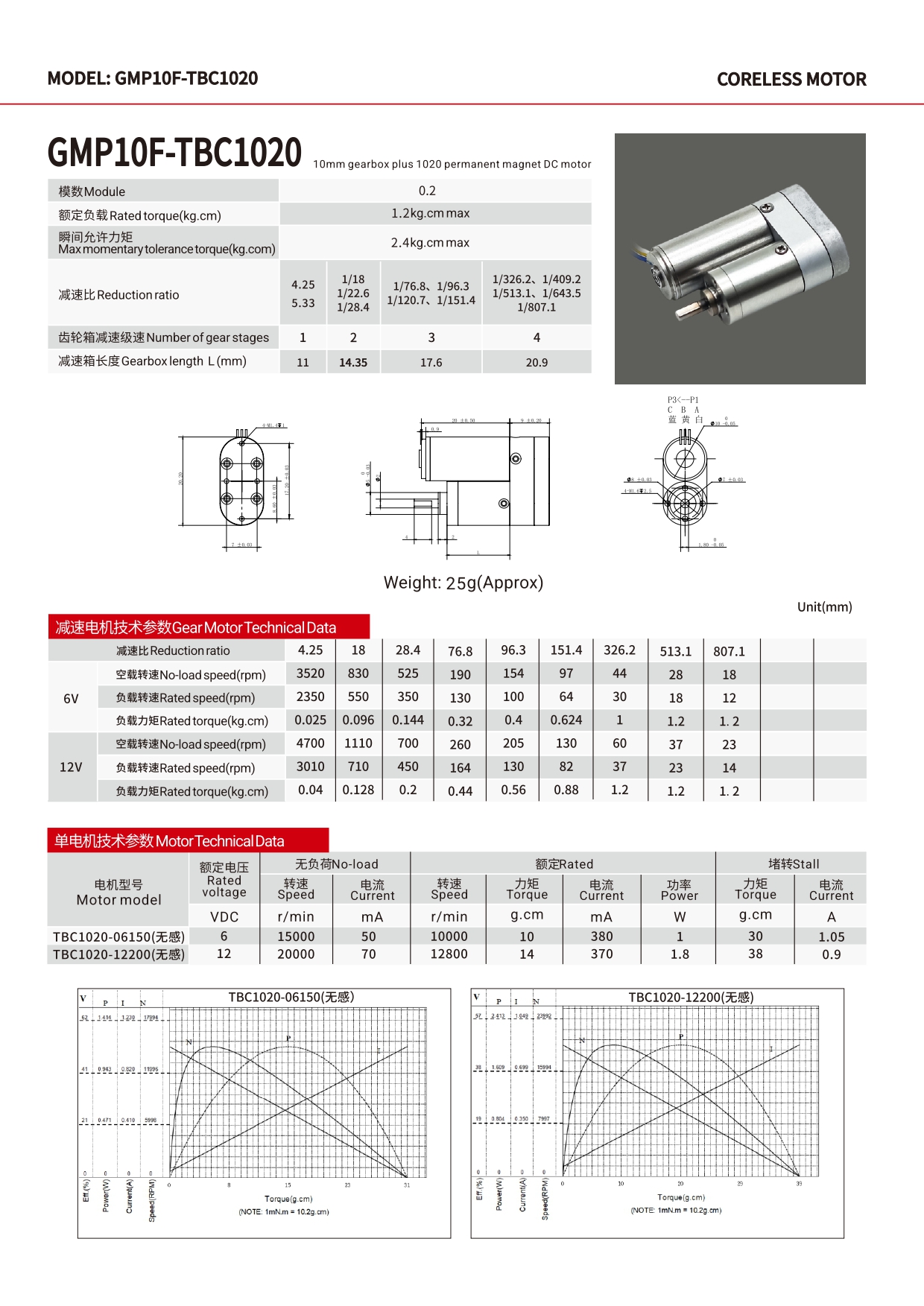

GMP10F-TBC1020 Compact Small Coreless High-speed DC Gear Motor with Parallel Configuration
• Unique Parallel Configuration
The distinctive parallel layout provides an alternative to conventional inline motor designs, helping engineers optimize the available installation space.
• Space-Efficient Design
The compact mechanical configuration is suitable for equipment where the motor must fit within a restricted or unconventional installation area.
• Coreless DC Motor Technology
The coreless motor design features low rotor inertia, supporting fast acceleration, deceleration and responsive dynamic motion.
• Ultra-Lightweight
With an approximate weight of only 25g, the motor is suitable for lightweight mechanisms and portable equipment.
• Miniature 10mm Gearbox
The small gearbox enables controlled speed and increased output torque while maintaining a compact overall design.
• Wide Reduction Ratio Selection
Reduction ratios from 4.25:1 to 807.1:1 are available to accommodate different output speed and torque requirements.
• 6V and 12V Versions
Flexible voltage options allow the motor to be integrated into different electronic systems and battery-powered equipment.
• High-Speed Motor Performance
The 1020 DC motor reaches no-load speeds of up to 15,000 rpm at 6V and 20,000 rpm at 12V.
• Flexible Output Performance
Rated output torque is available up to 1.2 kg·cm, while momentary maximum torque can reach 2.4 kg·cm, depending on the gear ratio and operating conditions.
