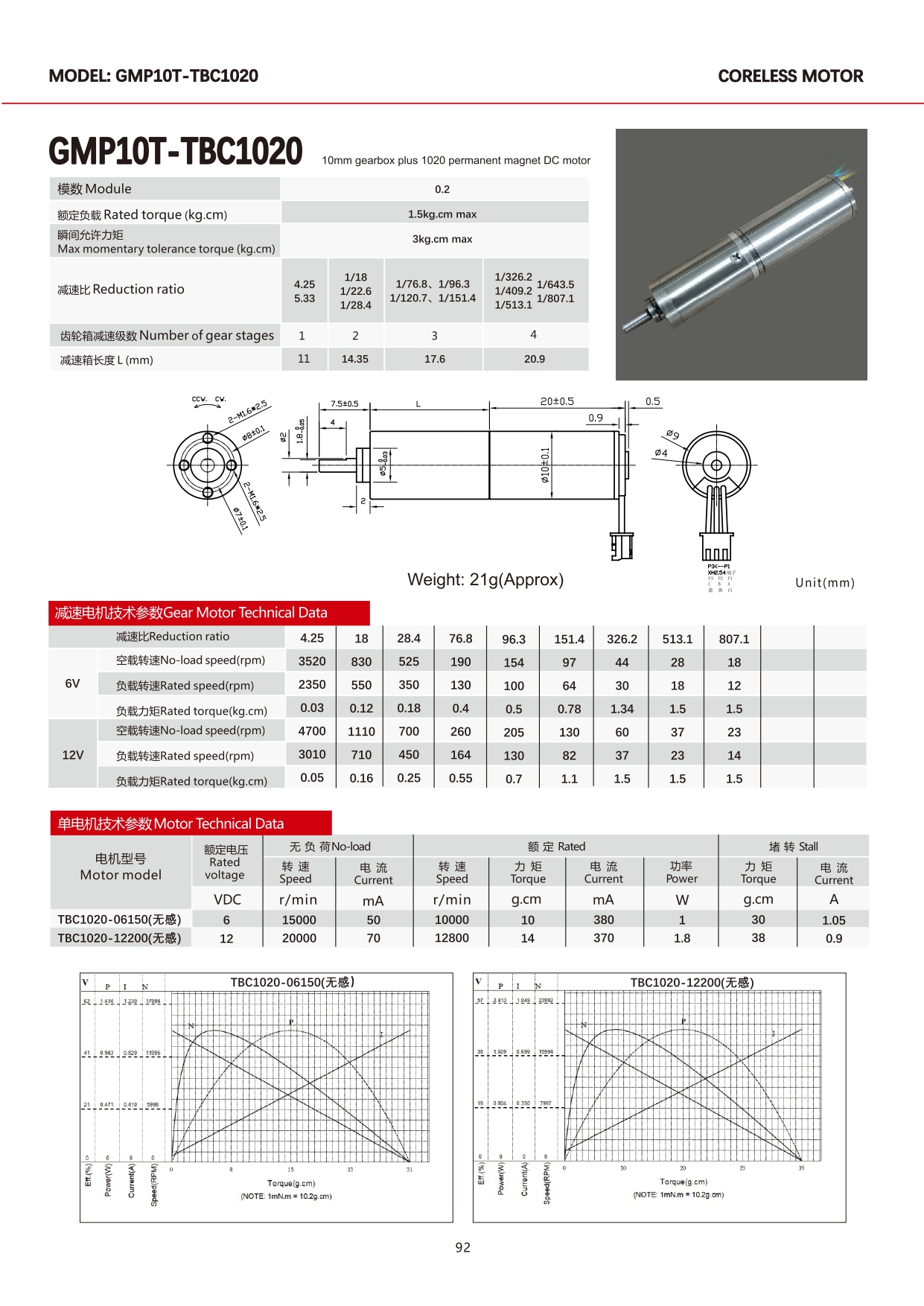

GMP10T-TBC1020 10mm Machined Planetary Gear Motor Brushless Coreless with Precision Metal Gearbox 6V 12V Micro High Torque for Robotics & Medical
The 10*20mm Machined Brushless Planetary Gear Motor represents the ultimate in precision micro-drive systems. This integrated unit combines a high-performance 10mm brushless coreless motor with a precision-machined planetary gearbox of equal diameter. The "machined" designation refers to the gearbox housing and components being manufactured from solid metal stock to the tightest tolerances, ensuring minimal backlash, maximum strength, and exceptional durability. This motor delivers the smooth, efficient power of coreless technology multiplied by the high torque density of a precision planetary gearbox, all within a 10mm diameter footprint.
Precision-Machined Gearbox Construction: Unlike stamped or molded gearboxes, this unit features machined metal gears and housing, ensuring concentricity, minimal runout, and extremely low backlash. This precision translates to accurate positioning and smooth output even under varying loads.
Maximum Torque Density: The combination of a coreless motor and a planetary gearbox provides the highest possible torque output for a given diameter. The gearbox efficiently converts the motor's high-speed, low-torque output into usable low-speed, high-torque power.
Zero Cogging Through Gearbox: The coreless motor's inherent smoothness is preserved through the precision gear train, resulting in output rotation completely free from cogging or vibration artifacts often amplified by lower-quality gearboxes.
Extended System Life: The brushless coreless motor provides long, maintenance-free life, while the hardened, machined gears resist wear even under continuous load. This combination ensures reliable operation throughout the equipment's service life.
Integrated Compact Design: With both motor and gearbox contained within the 10mm diameter envelope and 20mm length, this integrated solution simplifies system design and reduces assembly costs compared to separate motor and gearbox components.
Micro Robotics: Ideal for miniature robotic joints, surgical robot end effectors, and micro-manipulators requiring precise, high-torque motion in confined spaces.
Medical Devices: Perfect for implantable drug pumps, micro-dialysis systems, and miniature surgical tools where reliability and precise force application are essential.
Optical Systems: Used in auto-focus mechanisms for miniature cameras, laser beam steering systems, and precision optical filters requiring accurate positioning.
Aerospace and Defense: Suitable for micro UAV control surfaces, miniature actuator systems, and precision guidance mechanisms where size, weight, and reliability are critical.
