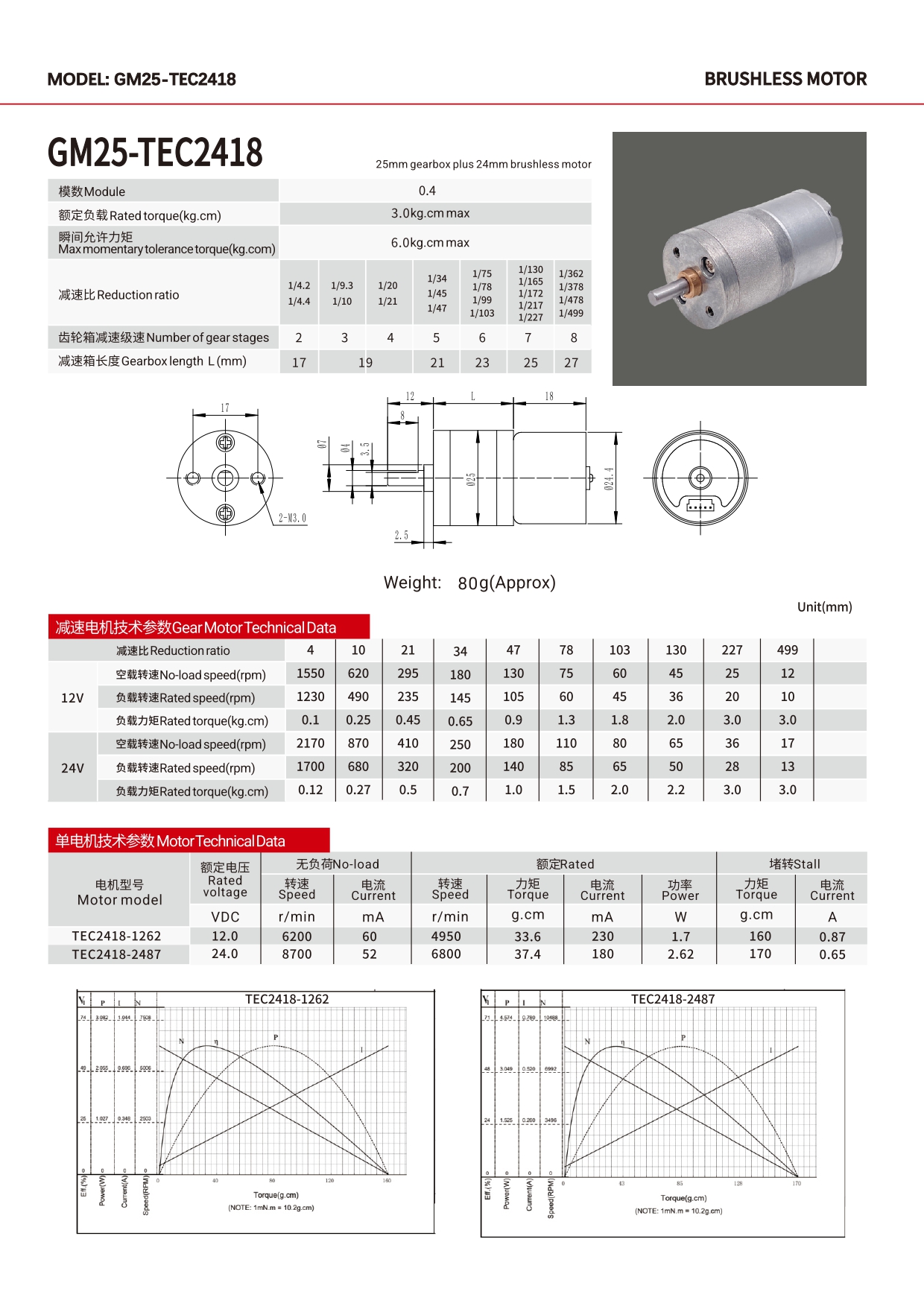

GM25-TEC2418 25mm Brushless DC Gear Motor Micro Gear Motor
Compact 25mm Gearbox: Space-saving design for compact equipment and limited installation spaces.
Brushless DC Motor: Electronic commutation eliminates mechanical brushes, reducing brush wear and maintenance requirements.
Multiple Gear Ratios: Available ratios from 4:1 to 499:1 allow flexible matching of output speed and torque requirements.
High Torque Output: Rated output torque is available up to 3.0 kg·cm, with momentary maximum torque up to 6.0 kg·cm.
12V and 24V Options: Provides flexible voltage selection for different equipment and control systems.
Wide Speed Range: Output speed can be selected according to the required gear ratio, from high-speed to low-speed applications.
Multi-Stage Gearbox: 2 to 8 gear stages are available to achieve different reduction ratios.
Compact & Lightweight: Approximately 80g, making it suitable for applications where installation space and weight are important.
Flexible OEM/ODM Options: Motor and gearbox configurations can be customized according to application requirements, including output speed, torque, voltage and mechanical interfaces.
Smart Door Locks – Drives locking and unlocking mechanisms with controlled speed and torque.
Smart Curtains & Blinds – Provides compact power for opening, closing and positioning mechanisms.
Robotic Systems – Used for compact actuators, joints, grippers and motion mechanisms.
Small Automation Equipment – Suitable for compact transmission and motion-control systems.
AGV & Mobile Robots – Can be used in auxiliary drive and actuation mechanisms where compact motor dimensions are required.
Automatic Dispensing Equipment – Provides controlled rotational motion for feeding and dispensing mechanisms.
Medical & Healthcare Equipment – Suitable for compact mechanisms requiring reliable and controlled movement.
Security & Access Control Systems – Suitable for electric locks, latches and other automated mechanisms.
Smart Home Devices – Provides motorized movement for compact household automation products.
Precision Actuators – Suitable for applications requiring reduced speed, increased torque and controlled mechanical movement.
