TM2808 Drone Motor 61g Lightweight 1500KV 1900KV 1051W Brushless Outrunner for FPV & UAV

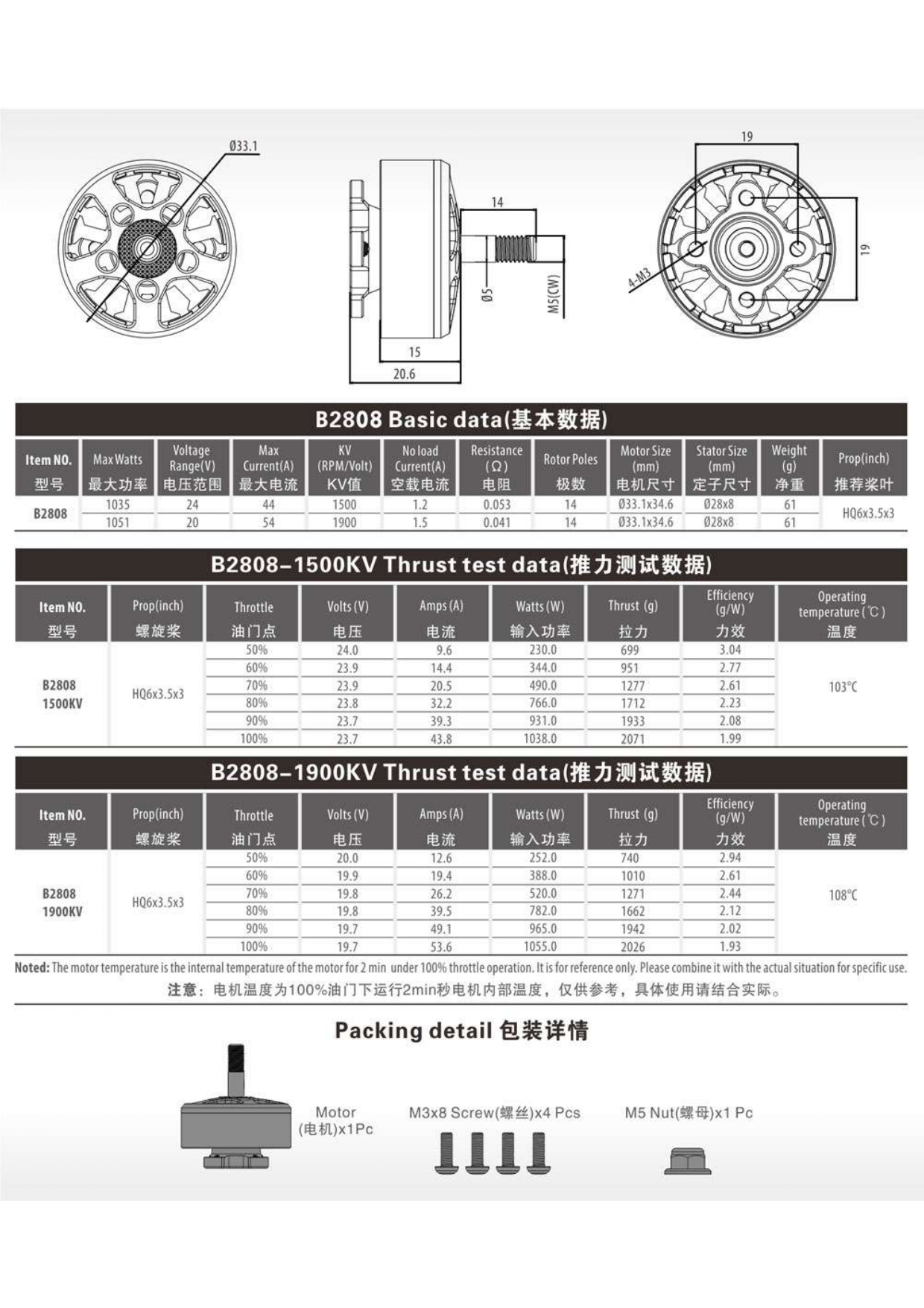

High Power Density — Capable of delivering over 1000W of max power (1035W for 1500KV, 1051W for 1900KV) while weighing only 61g, giving an outstanding power-to-weight ratio.
Durable 14-Pole Outrunner Design — The 14-pole rotor and 28x8mm stator provide smooth, high-torque operation, high torque density, and excellent heat dissipation during aggressive maneuvers.
Optimized for 6-inch Tri-Blade Props — Specifically tested and tuned for the HQ6x3.5x3 propeller (recommended prop size), maximizing aerodynamic efficiency and throttle response.
Precision Engineering — Features a 5mm titanium alloy shaft with an M5 CW thread, 4x M3 mounting holes (19mm diameter bolt pattern), and a compact 33.1x34.6mm motor size.
Built for Demanding Flight — With a rated operating temperature of 103°C (1500KV) and 108°C (1900KV) under 100% throttle for 2 minutes, it is built to withstand intense flight conditions.
Complete Mounting Kit — Each motor comes with 4x M3x8 screws and 1x M5 nut for easy installation right out of the box.
FPV Racing & Freestyle Drones — Perfect for 5-inch to 6-inch FPV racing quads where rapid throttle punch and high thrust-to-weight are essential.
Long-Range & Endurance UAVs — The 1500KV variant’s 3.04 g/W efficiency at hover makes it ideal for long-flight-time survey drones and mapping UAVs.
Cinematic & Camera Drones — Smooth power delivery and reliable 6S operation for stable aerial photography and videography.
VTOL & Fixed-Wing UAVs — High thrust output makes it suitable for vertical take-off and landing hybrid aircraft and small fixed-wing platforms.
Drone Racing & Multi-rotor Training — Durable construction and standard M3 mounting make it a reliable choice for educational and training multirotors.
Industrial Inspection Drones — Used in inspection, search and rescue, and agricultural monitoring drones requiring dependable 6S power systems.
