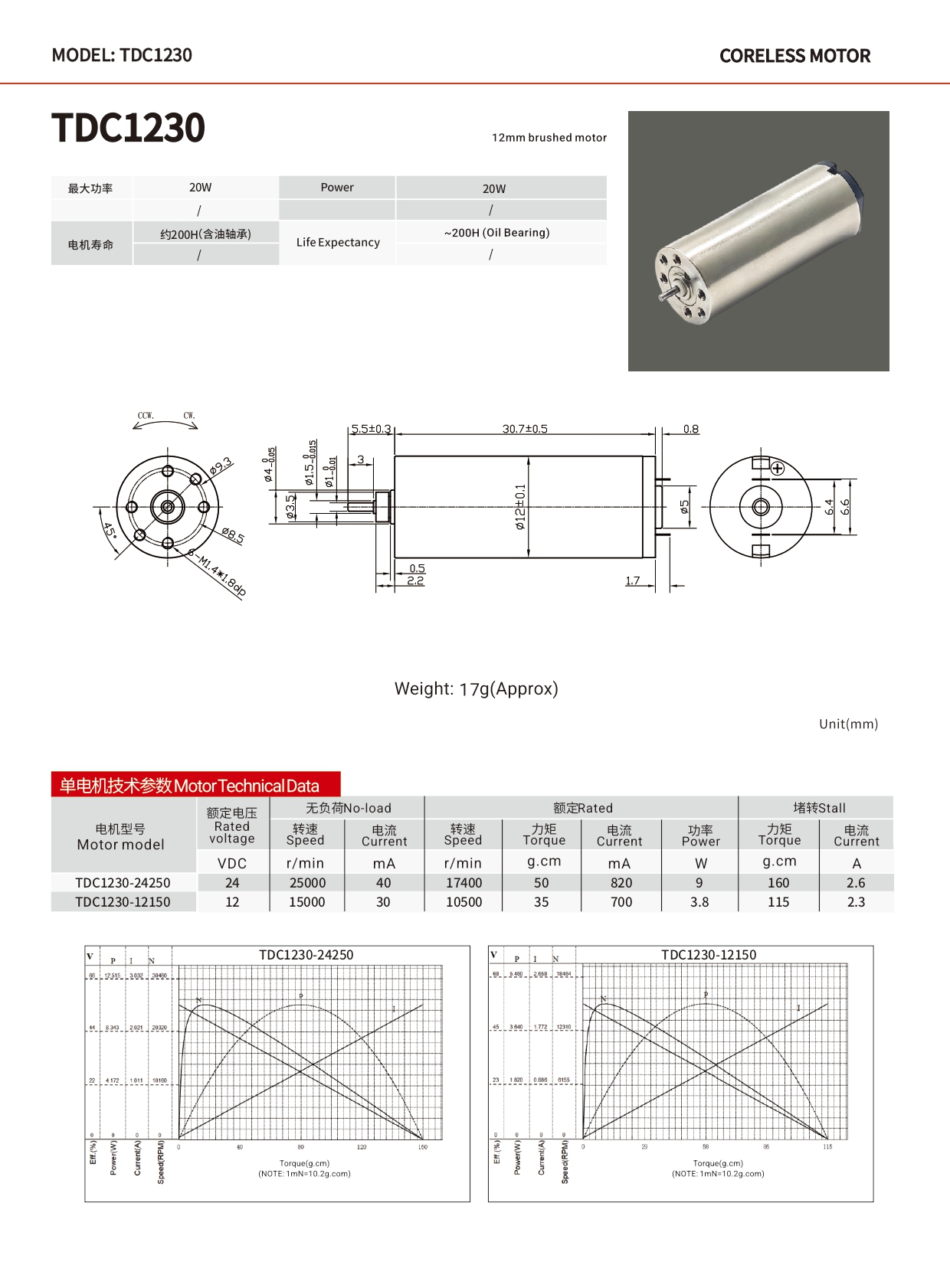

TDC1230 12mm Coreless DC Motor 12V 24V 20W High Speed 25000RPM Brushed Micro Motor
True Coreless Design — The rotor contains no iron core, resulting in extremely low rotor inertia. This allows for lightning-fast acceleration and deceleration, zero cogging, and exceptionally smooth operation even at low speeds.
High Power Density — With a maximum power output of 20W, this 12mm motor punches far above its weight class. It delivers 9W (24V) to 3.8W (12V) of continuous rated power.
Extreme High Speed — The 24V version reaches an impressive 25,000 rpm no-load speed (17,400 rpm rated), while the 12V version hits 15,000 rpm no-load (10,500 rpm rated).
High Starting Torque — Despite being a high-speed motor, it offers solid stall torque of 160 g.cm (24V) and 115 g.cm (12V).
Highly Efficient — Coreless motors eliminate eddy current losses in the iron core, offering superior electrical efficiency compared to conventional brushed motors.
Ultra-Compact & Lightweight — Weighing only 17g, with a 12mm diameter and a short 30.7mm body length, it is perfect for highly weight-sensitive designs.
Precision Build — Equipped with a Φ1.5mm output shaft, an M1.4x1.8 threaded mounting flange, and oil-impregnated bearings (approx. 200-hour lifespan).
Dual Voltage Options — Available in 12V (TDC1230-12150) and 24V (TDC1230-24250) configurations to match your specific power supply.
Customizable — Shaft length, wire length, connectors, and custom windings are available for OEM projects.
Medical & Laboratory Equipment — Micro centrifuges, high-speed surgical drills, dental handpieces, and precision fluid pumps.
Aerospace & Drones — High-speed drone propellers, control surface actuators, and lightweight UAV mechanisms where every gram counts.
Precision Optics — High-speed optical scanners, laser galvo systems, and rapid-focus mechanisms.
Automation & Robotics — High-frequency vibration modules, rapid pick-and-place gripper actuation, and haptic feedback devices.
Industrial Tools — Miniature high-speed spindle drives, engraving tools, and precision cutting devices.
Consumer Electronics — High-end RC models, haptic gaming devices, and high-speed miniature fans.
Automotive — Active grille shutter actuators, headlight leveling motors, and high-speed micro-pumps.
