TEC2418 24mm Dia DC Brushless Motor High Speed Motor


  • Model: TEC2418
  • Diameter: 24mm
  • Length: 18mm
  • img

    Product Detail

    Specification

    Product Tags

    Videos

    Feature

    1. Small size dc brushless motor with low speed and big torque
    2. Suitable to small diameter, low noise and big torque application
    3. Can equip with Gear Reducer

    photobank (6)

    Application

    Robot,lock. Auto shutter, USB fan,Slot machine,Money detector
    Coin refund devices,Currency count machine,Towel dispensers
    Automatic doors,Peritoneal machine,Automatic TV rack,
    Office equipment ,Household appliances,etc.

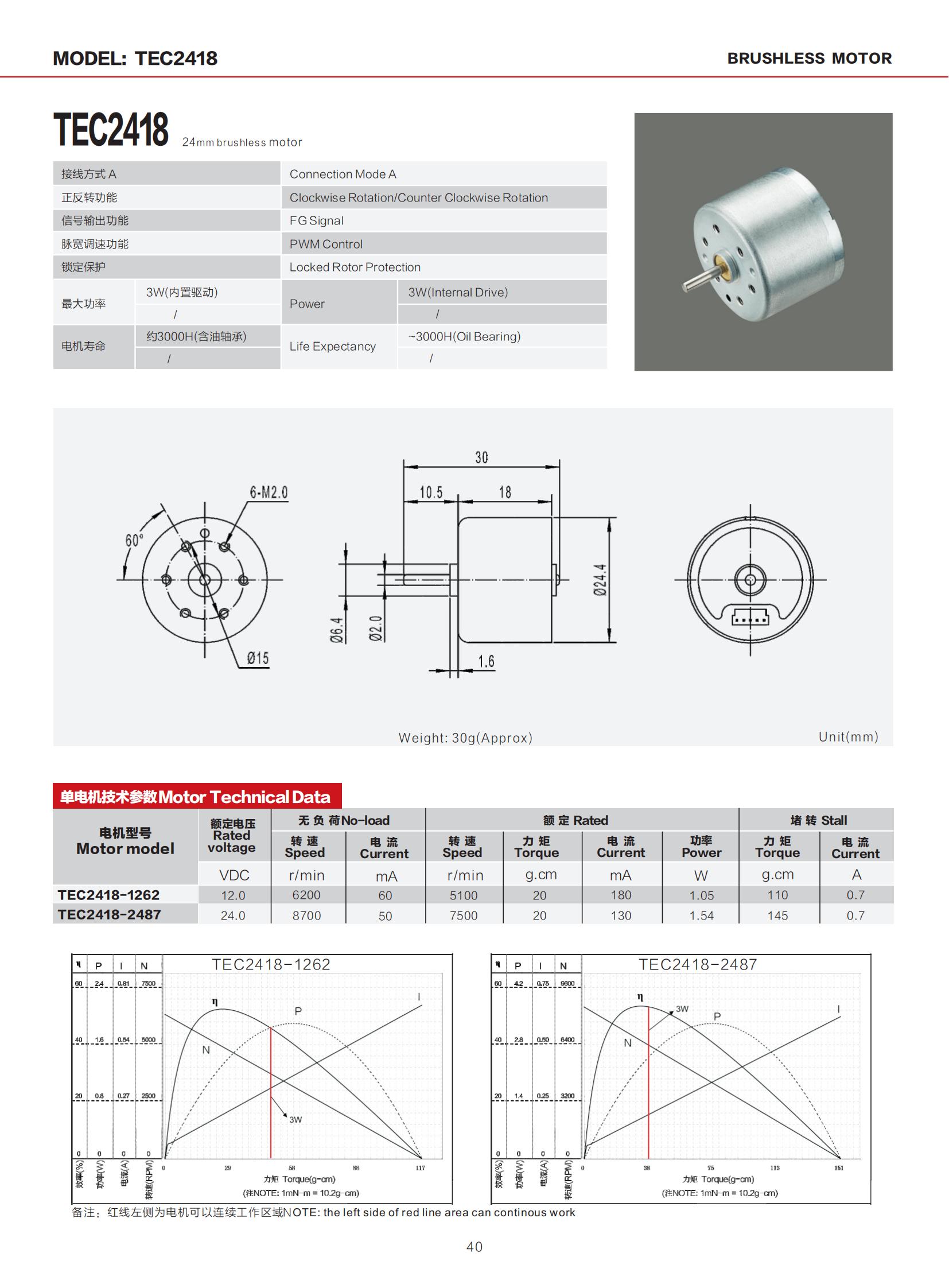

    Parameters

    A brushless DC electric motor, also known as an electronically commutated motor, is a synchronous motor using a direct current (DC) electric power supply. It uses an electronic controller to switch DC currents to the motor windings producing magnetic fields which effectively rotate in space and which the permanent magnet rotor follows. The controller adjusts the phase and amplitude of the DC current pulses to control the speed and torque of the motor. This control system is an alternative to the mechanical commutator (brushes) used in many conventional electric motors.
    The construction of a brushless motor system is typically similar to a permanent magnet synchronous motor (PMSM), but can also be a switched reluctance motor, or an induction (asynchronous) motor. They may also use neodymium magnets and be outrunners (the stator is surrounded by the rotor), inrunners (the rotor is surrounded by the stator), or axial (the rotor and stator are flat and parallel).
    The advantages of a brushless motor over brushed motors are high power-to-weight ratio, high speed, nearly instantaneous control of speed (rpm) and torque, high efficiency, and low maintenance. Brushless motors find applications in such places as computer peripherals (disk drives, printers), hand-held power tools, and vehicles ranging from model aircraft to automobiles. In modern washing machines, brushless DC motors have allowed replacement of rubber belts and gearboxes by a direct-drive design.
