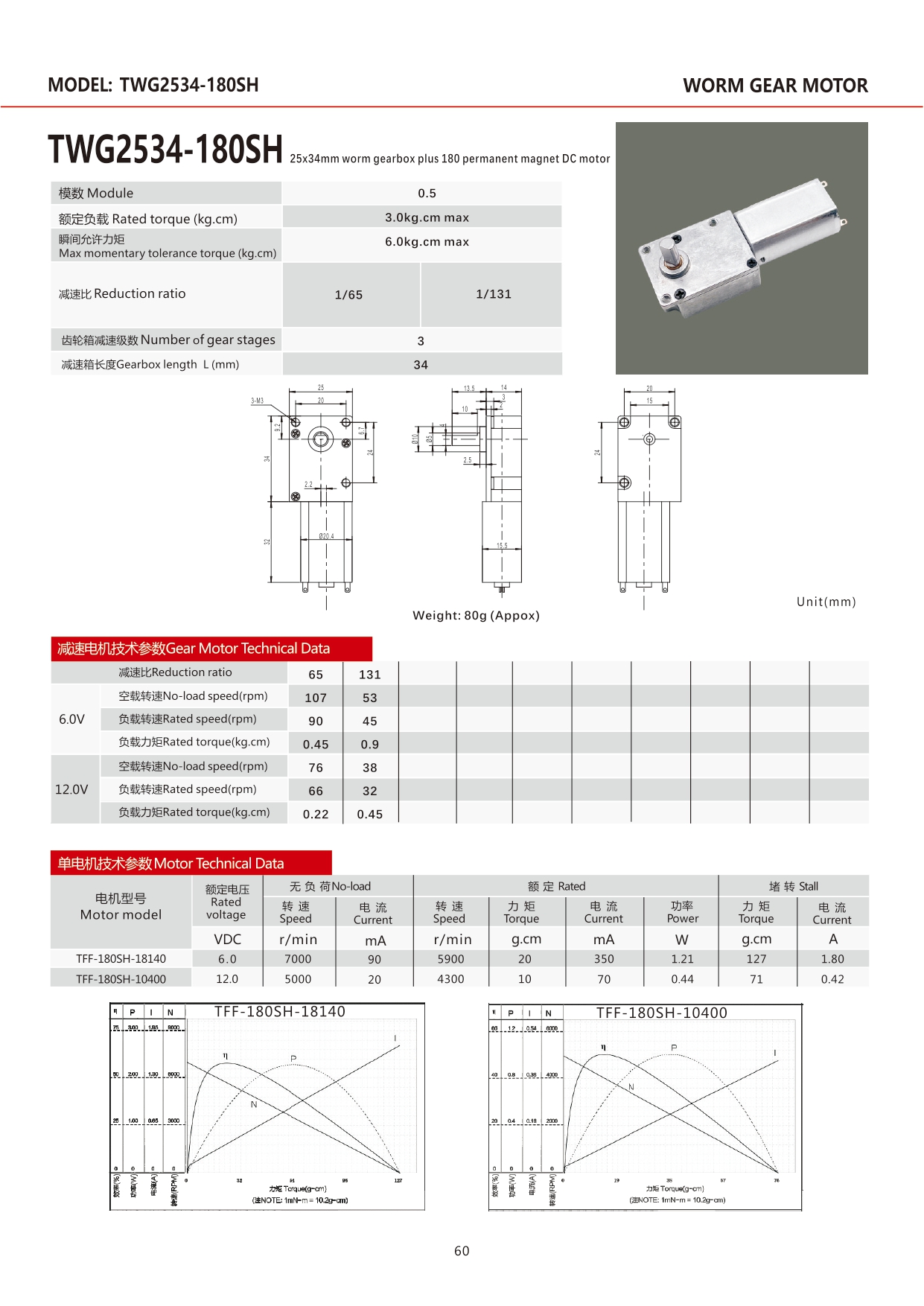

TWG2534-180SH PMDC Worm Gearbox Motor 12V 24V DC Right Angle Gear Motor with Self-Locking for Industrial Machinery
The 180 Series Permanent Magnet DC (PMDC) Motor with a 25*34mm Worm Gearbox offers a unique combination of power transmission features in a compact, right-angle package. This unit pairs a brushed DC motor with a durable worm gear reduction unit measuring 25mm by 34mm. The primary advantage of this configuration is the ability to change the direction of power transmission by 90 degrees, which allows for greater flexibility in mechanical design. Furthermore, the worm gear drive provides inherent high reduction ratios and the critical benefit of self-locking, preventing the load from back-driving the motor when power is disconnected.
Self-Locking Capability: The worm and wheel design naturally prevents the output shaft from being turned by the load. This is a crucial safety and functional feature for lifting applications, tilting mechanisms, and any system where the load must hold its position without the need for a mechanical brake.
Right-Angle Configuration: The 90-degree output saves significant space in machinery designs, allowing the motor to be mounted parallel to the driven component rather than extending in a straight line. This compact gearbox footprint is ideal for tight installations.
High Torque and Durability: Constructed with a hardened steel worm and a durable (often bronze or metal alloy) worm wheel, the gearbox is designed for high load capacity and smooth, quiet operation. The 180 series PMDC motor provides reliable and cost-effective motive power for intermittent or continuous duty.
Versatile Mounting Options: The motor and gearbox assembly can be customized with various output shaft configurations (single or double-ended), mounting flanges, and the addition of encoders for closed-loop speed feedback.
Industrial Machinery: Used in conveyor systems (especially inclines where backstop is needed), material handling lifts, and packaging machine adjustments.
Automation and Robotics: Ideal for robotic arms, grippers, and automated guided vehicles that require a compact drive with holding torque.
Smart Home and Furniture: Powering adjustable hospital beds, electric recliners, lift chairs, and adjustable standing desks where safety and quiet operation are required.
Access Control and Security: Suitable for operating heavy gates, barriers, and rolling shutters, benefiting from the self-locking feature to enhance security.
