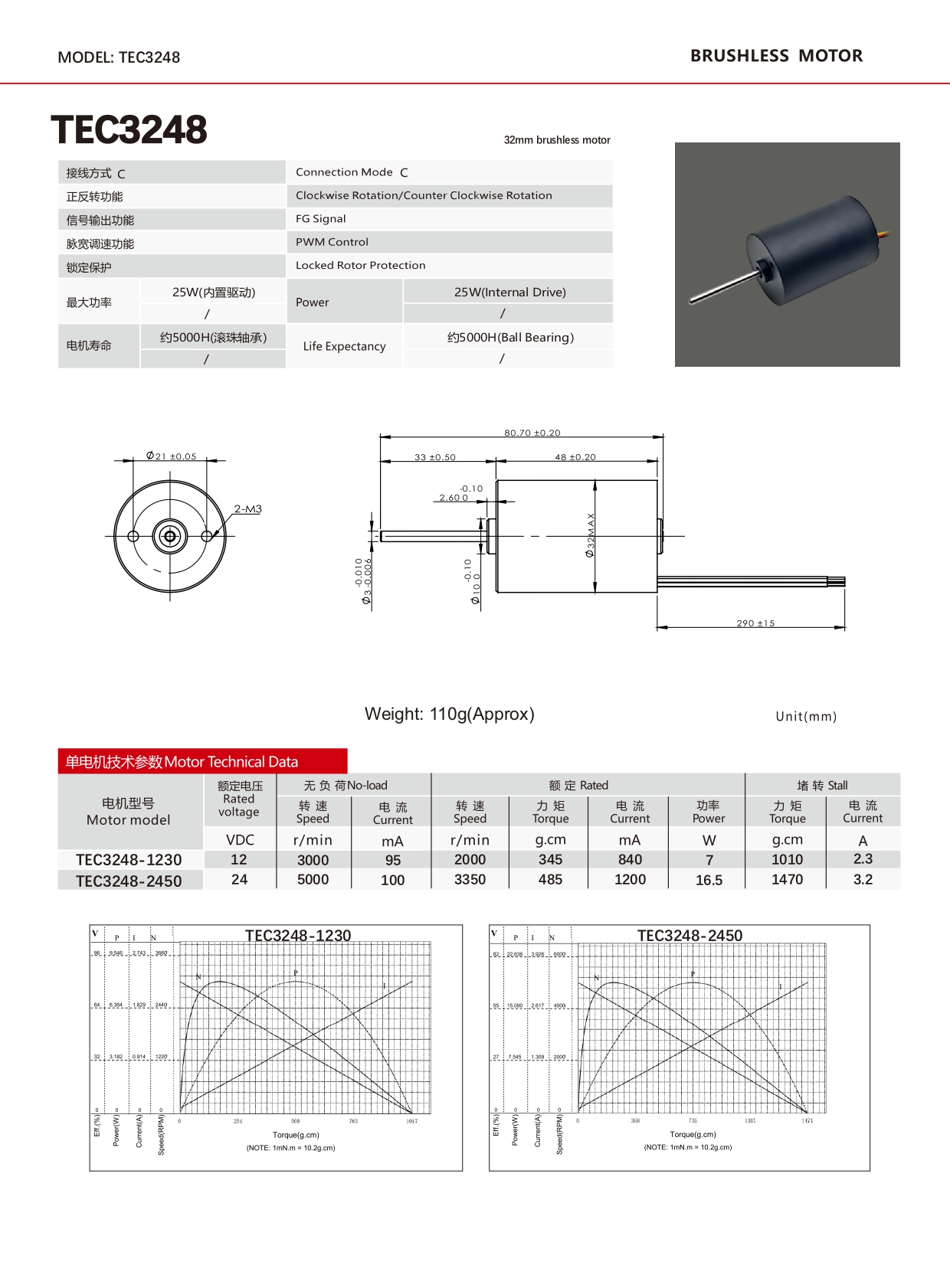

TEC3248 Brushless DC Micro Motor Industrial Grade Small High Torque BLDC for Automation & Robotics
When your application demands a "workhorse" that can run 24/7, the 3248 series is the industry standard. This motor is built with an upgraded silicon steel sheet stator, which significantly reduces eddy current loss and improves energy conversion efficiency. It is the ideal upgrade for engineers looking to replace 30mm or 35mm brushed motors with a more reliable, maintenance-free brushless solution that handles higher duty cycles without overheating.
Enhanced Heat Dissipation: The 32mm diameter housing is optimized for thermal convection, ensuring the motor stays cool during prolonged industrial operations.
Advanced Sensor Options: Available with or without Hall effect sensors. Hall-sensored versions provide precise position feedback for complex motion control.
Robust Torque Output: Delivers a high "Torque-to-Weight" ratio, making it powerful yet light enough for mobile robotic platforms.
Voltage Versatility: Fully customizable to operate at 12V, 24V, or 36V DC systems depending on your power supply architecture.
Widely applied in Automated Guided Vehicles (AGV), Conveyor Belt Systems, Robotic Arm Joints, Industrial Pumps, and Smart Vending Machines.
