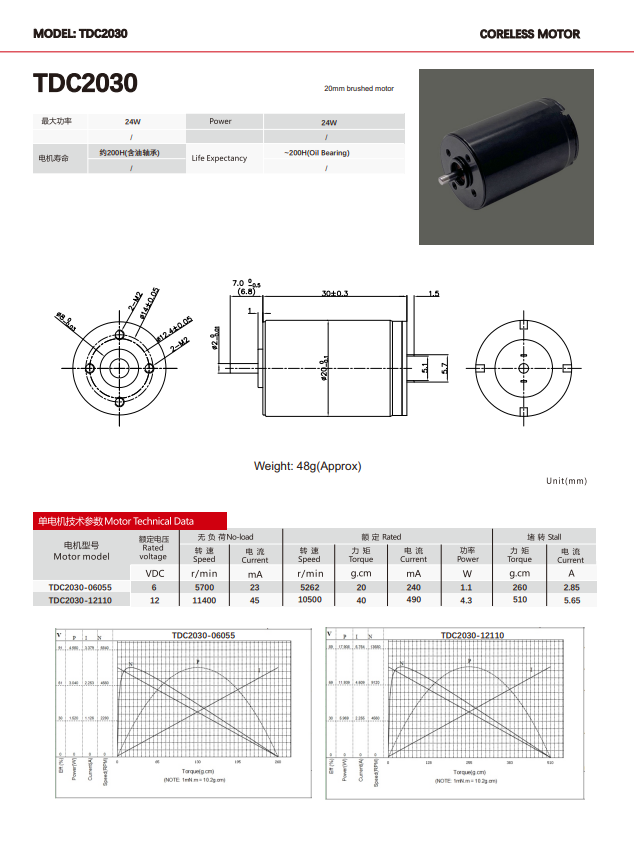

TDC2030 6V 12V OEM ODM Permanent Magnet Micro Electric Mini Motor Low Noise DC Coreless Brushed Motor for Robot and Toy
1. Miniaturization and lightweight design
Ultra-compact size, weight is about 48g, high power density, suitable for extremely space-constrained scenarios (such as wearable devices, micro robot drive modules).
2. Low noise and smooth operation
The hollow cup rotor has no core friction, equipped with precision commutator and graphite brush, the operating noise is <30dB, which meets the requirements of silent sensitive scenarios (such as hearing aids, sleep monitoring equipment).
3. High cost performance and simple control
The brush structure does not require complex drive circuits, directly adjusts the speed through voltage, and has low control cost, which is suitable for budget-sensitive mass applications (such as toys, small household appliances).
4. Wide voltage compatibility
Supports 4.5V-12V DC input, suitable for button batteries, lithium batteries or regulated power supplies, no-load speed range of 5,000-15,000 RPM, flexible matching low speed high torque or high speed light load requirements.
5. Fast response and low inertia
The hollow cup rotor has extremely low inertia and quick start and stop response, which is suitable for precision equipment that requires frequent actions (such as camera aperture adjustment and micro valve control).
1. High precision and consistency
Using coreless winding technology, torque fluctuation <5%, speed deviation ±3%, supporting stable output under open-loop control
2. OEM/ODM
Supports customization of shaft length, output direction, wire length and interface, adapting to the installation requirements of different equipment
3. Environmental adaptability
Operating temperature range -20℃ to +70℃, optional dustproof coating, suitable for home, office and light industrial environments
1. Medical and health equipment
Micro medical tools: insulin pump micro gear set drive, portable oximeter turbine, capsule endoscope screw propeller.
Health monitoring: smart bracelet tactile feedback motor, thermometer micro swing mechanism.
2. Consumer electronics and smart home
Personal care: electric toothbrush vibration motor, beauty instrument micro-current roller drive.
Smart hardware: electronic cat eye focus adjustment, smart door lock fork mechanism, drone gimbal fine-tuning motor.
3. Industry and automation
Precision control: 3D printer wire feed wheel drive, micro flow meter impeller, automatic instrument pointer drive.
Testing equipment: optical sensor displacement platform, PCB board test probe positioning mechanism.
4. Toys and educational equipment
Interactive toys: robot model joint drive, STEM teaching aids power module.
Remote control equipment: mini quadcopter servo, RC car steering fine-tuning motor.
