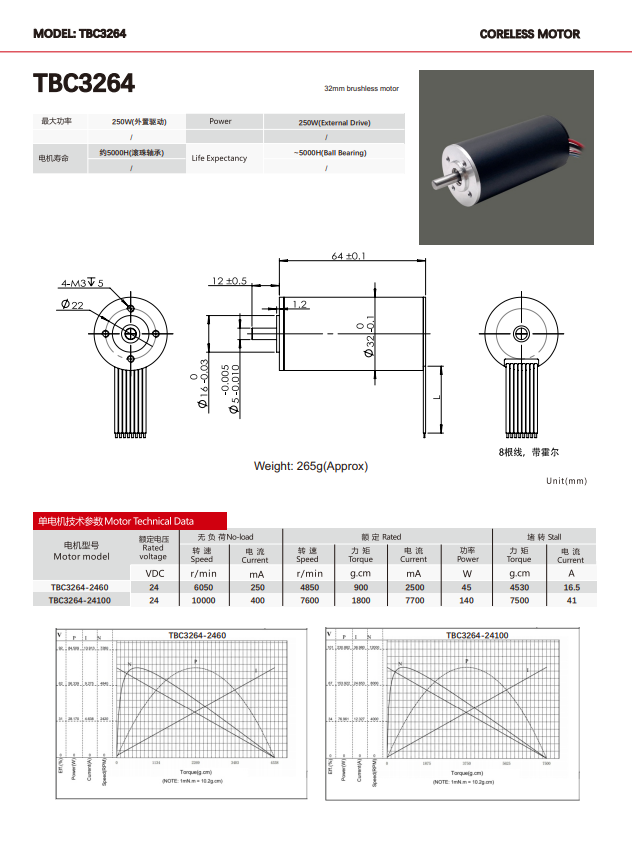

TBC3264 12V 24V 32mm Low Noise Long Life Permanent Magnet Micro BLDC Motor Electric Brushless DC Coreless Motor
1. High-efficiency permanent magnet drive, high energy density
Adopting high-performance permanent magnets, combined with hollow cup coreless structure, eddy current loss is eliminated, and the power conversion efficiency is >90%, which is suitable for high-load continuous operation scenarios.
2. Ultra-long service life and reliability
The brushless design completely eliminates brush wear, and with ceramic bearings and all-metal gearboxes, the life is >10,000 hours, meeting the 7×24-hour operation requirements of industrial-grade equipment.
3. Extremely low noise and vibration optimization
The hollow cup rotor has no hysteresis loss, combined with symmetrical magnetic circuit design and precise dynamic balance calibration, the operating noise is <40dB, suitable for acoustically sensitive scenarios.
4. Wide voltage compatibility and intelligent protection
Supports 12V/24V dual voltage input, built-in overcurrent, overheating, and reverse connection protection circuits, adapts to lithium battery packs or industrial DC power supplies, and ensures stable operation under complex working conditions.
5. High torque and dynamic response
The rated torque can be customized to support instantaneous load switching (such as rapid start and stop of automated production lines, high-frequency movements of robot joints).
1. Modular integrated design
32mm compact diameter, supports hollow shaft or double-outlet shaft structure, easy to integrate encoders, brakes or cooling fans, and adapt to multi-degree-of-freedom robotic arms.
2. Intelligent control compatibility
Supports FOC algorithm, equipped with Hall sensor/multi-turn absolute encoder, position repeatability accuracy ±0.02°, speed control accuracy ±0.5%, meeting the high-precision requirements of CNC machine tools, precision optical platforms, etc.
3. Multi-stage reduction gearbox adaptation
Can be equipped with planetary reduction gearbox, with a maximum output torque of 20N·m, supporting low-speed heavy load or high-speed light load scenarios.
4. Low electromagnetic interference and complete certification
CE and RoHS certified, compatible with medical equipment (MRI-assisted robots) and communication equipment (5G base station antenna adjustment system).
1. Industrial Automation and Robotics
Heavy Duty Robotic Arm: Automotive Welding Robot Joint Drive (Single Joint Torque Requirement 3-6N·m), CNC Machine Tool Tool Changing Mechanism.
Logistics Automation: Lifting Axle of Stereoscopic Warehouse Stacker, Swing Wheel Drive of Express Sorting Machine.
Precision Machining: Semiconductor Wafer Handling Manipulator, Focus Adjustment Module of Laser Cutting Machine.
2. Medical and Laboratory Equipment
Imaging Diagnosis: CT Machine Rotating Rack Drive, Ultrasonic Probe Multi-dimensional Adjustment Mechanism.
Surgical Robot: Orthopedic Navigation Robotic Arm Power Module, Minimally Invasive Surgical Instrument Wrist Joint.
Laboratory Instruments: Centrifuge High-speed Rotor Drive, Automated Sample Liquid Dispensing System.
3. High-end Smart Devices
Smart Home: High-end Massage Chair Multi-axis Drive, Smart Curtain Heavy-duty Guide Rail Motor.
New Energy Field: Charging Pile Gun Head Locking Mechanism, Photovoltaic Panel Cleaning Robot Rotating Joint.
