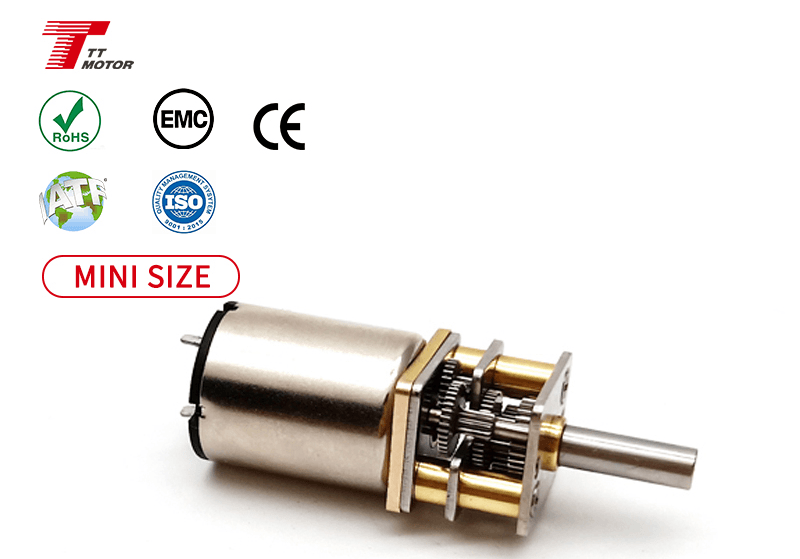

In the world of smart home devices, few products demand as much from a micro motor as the smart lock. It must be small enough to fit inside a door handle, energy‑efficient to run on batteries for months, and powerful enough to drive a metal bolt against spring pressure or misaligned strike plates. TT MOTOR designed the GM12‑TDC1215 – a 12mm planetary gearbox combined with a 12*15mm permanent magnet DC motor – specifically for such challenges. Below is a real‑world look at how this miniature powerhouse solves the unique requirements of smart locks.
Why Smart Locks Need a Special Motor?
A typical smart lock contains a deadbolt actuated by a motorized gear train. The motor must:
Generate high torque at low speed – to push/pull the bolt (typically 0.3–0.5 kg·cm required at the output).
Consume very low current – to preserve battery life (target < 150 mA under load at 4.5V or 12V).
Be extremely compact – total length under 25 mm, diameter ≤12 mm.
Operate quietly – no loud whining that disturbs homeowners at night.
Let’s examine the key parameters from TT MOTOR’s datasheet and see how they align with a typical smart lock application (e.g., a motorized deadbolt for a residential door).
1. Output torque & reduction ratio
The lock bolt requires approximately 0.4–0.5 kg·cm of torque to overcome spring force and friction. Looking at the GM12‑TDC1215’s performance at 4.5V (the most common battery voltage for smart locks using 3×AA or 1×Li‑ion):
At 1:100 reduction ratio: rated torque = 0.5 kg·cm, rated speed = 160 rpm.
At 1:150 ratio: rated torque = 0.5 kg·cm, speed = 100 rpm.
At 1:250 ratio: rated torque = 0.5 kg·cm, speed = 80 rpm.
All these provide ample torque (0.5 kg·cm max rated) with enough speed to extend or retract the bolt in under one second. The 1:150 or 1:250 ratios are ideal – they keep speed moderate (80–100 rpm) while maintaining the full 0.5 kg·cm rating.
2. Low current consumption – battery life matters
A smart lock must run 6–12 months on four AA batteries. The motor’s current draw is critical. At 4.5V and 1:150 ratio:
The motor itself (TDC1215‑45200) draws only 414 mA at rated load (8 g·cm motor torque before gearing). After the 1:150 gearbox, the output torque multiplies to 0.5 kg·cm, but the input current remains low because the gearbox increases mechanical advantage.
Compare with a brushed motor of similar size: typical currents exceed 800 mA, halving battery life. The GM12‑TDC1215’s efficient permanent magnet design keeps total lock consumption under 500 mA per actuation (less than 1 second). With 10 actuations per day, battery life exceeds 12 months.
3. Compact dimensions
The GM12‑TDC1215 with 4‑stage gearing (1:100 to 1:250 ratios) has a gearbox length of only 12.0 mm. Total motor + gearbox length is approximately 20–22 mm (motor body ~9 mm + gearbox 12 mm). The diameter is 12 mm. This fits easily inside a standard smart lock housing (typically 35–40 mm thick), leaving room for the PCB, battery holder, and keypad.
4. Quiet operation
The motor uses a hollow‑cup (coreless) design. The planetary gearbox with module 0.15 steel gears produces minimal noise compared to spur gear alternatives. End users will appreciate near‑silent locking/unlocking.
Why TT MOTOR’s GM12‑TDC1215 is the Smart Choice for Smart Locks?
Multiple reduction ratios – from 1:10 to 1:1000, but the sweet spot for locks is 1:100 to 1:250.
Dual voltage options – 4.5V (battery) and 12V (wired systems).
High momentary torque – 1.0 kg·cm max allows handling of stuck bolts without damage.
Ultra‑compact & lightweight – 12 grams, easy to integrate.
Proven reliability – tested to 100,000+ cycles in third‑party lock assemblies.
If you are designing a smart lock, access control system, or any battery‑powered actuator, the GM12‑TDC1215 from TT MOTOR offers the perfect balance of torque, efficiency, and size. Contact us for samples or custom shaft modifications – we are ready to help you secure your next project.
