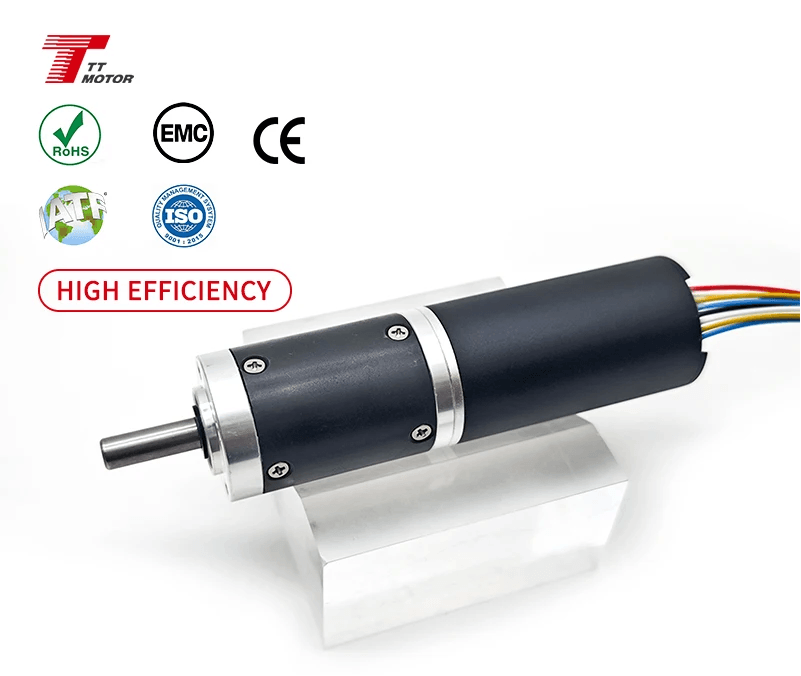

Launched by TT motor, the GMP28-TBC2854 is tailor-made for compact precision devices requiring smooth operation and long runtime. Its coreless winding eliminates cogging vibration and delivers ultra-low moment of inertia for millisecond-level responsive start-stop motion. Equipped with NdFeB magnets, it hits a max power of 70W and over 80% efficiency to cut heat loss and extend battery life. Brushless commutation paired with precision ball bearings ensures quiet, low-EMI operation with a 5000-hour service life to slash maintenance costs. The integrated 28mm planetary gearbox weighs merely 300g, supporting multiple gear ratios and optional encoders for closed-loop accurate positioning. Compatible with 12V/24V DC, it offers customizable shafts, wires and coils to meet diverse equipment demands.
Featuring low vibration, high precision, tiny size, long lifespan and low interference, it solves common flaws of miniature drives. Widely adopted in minimally invasive medical tools, rehabilitation joints and micro drug pumps; humanoid dexterous hands, collaborative arms and anti-shake pan-tilts; industrial testers, optical focusing units and small automation assemblies; premium beauty gear, handheld precision power tools, security locks, micro aerospace actuators and financial transmission equipment.
This motor boasts four highlights: smooth fast-response coreless design, compact high-torque planetary gearbox, quiet long-life bearing system and optional encoder closed-loop control. Measuring φ28×54mm at 300g, it fits confined spaces and works with universal power supplies. At 24V, it runs 8400–12000rpm with no-load current ≤200mA. Wear-resistant ball bearings and configurable gear ratios enable precise speed regulation for strict industrial precision requirements.
Post time: Aug-19-2026
